Loading Ramp

JMP TECH Loading Ramp is best assistance for your loading-unloading application, without any special new constructions or buildings system provides a loading facilities to clients.

Our special designed mobile yard ramps offer the flexibility easy to use properties also make an essential contribution to optimising your logistics process.

Our Services

LOADING RAMP CAP.6 Ton

Loading Capacity: 6 ton
Overall Length: 10500 mm
Overall Width: 2100 mm
Clear Width: 2000 mm
Adjustable Working Height: 1000-1800 mm
Net Weight: 2670 Kg
Slope Length: 7000 mm
Platform Length: 2200 mm
Electrical pump type: optional

LOADING RAMP CAP.8 Ton

Loading Capacity: 8 ton
Overall Length: 11400 mm
Overall Width: 2100 mm
Clear Width: 2000 mm
Adjustable Working Height: 1000-1800 mm
Net Weight: 2350 Kg
Slope Length: 7500 mm
Platform Length: 2400 mm
Electrical pump type: optional

LOADING RAMP CAP.10 Ton

Loading Capacity: 10 ton
Overall Length: 11400 mm
Overall Width: 2100 mm
Clear Width: 2000 mm
Adjustable Working Height: 1000-1800 mm
Net Weight: 2750 Kg
Slope Length: 7500 mm
Platform Length: 2400 mm
Electrical pump type: optional

LOADING RAMP CAP.15 Ton

Loading Capacity: 15 ton
Overall Length: 11400 mm
Overall Width: 2100 mm
Clear Width: 2000 mm
Adjustable Working Height: 1000-1800 mm
Net Weight: 3250 Kg
Slope Length: 7500 mm
Platform Length: 2400 mm
Electrical pump type: optional

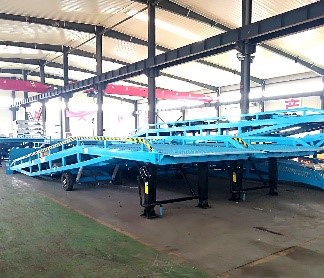

Loading Ramp
Loading Ramp 2
Loading Ramp 3
Loading Ramp 4

Features and Benefit JMP Tech Loading Ramp

  • Two moveable lip design facilitate the free lateral floating when the truck box floor move up and down.

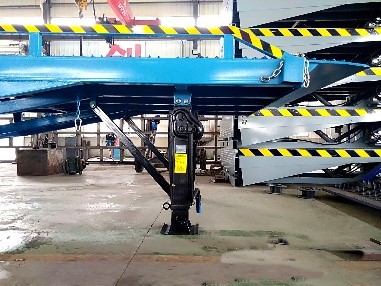

  • Two hydraulic retractable leg help to sustain the passage of heavy load during operation.

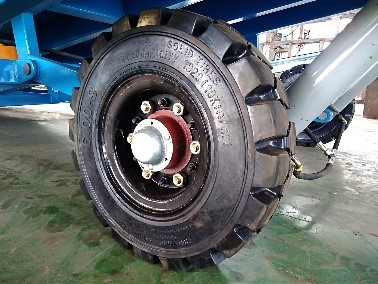

  • Two solid tyres provide excellent traction without worry of puncture.
  • The end bracket enable our yard ramp to be towable by forklift.
  • Capacity : 6 ton, 8 ton, 10 ton, 15 ton.
  • Steel grating on the slope floor prevent the forklift from slipping back during operation.
  • Top flat table is made of anti-skid steel plate.
  • We use hydraulic pump and it enable our LOADING RAMP to be operated manually with great ease, eliminating the need for electrical operation.

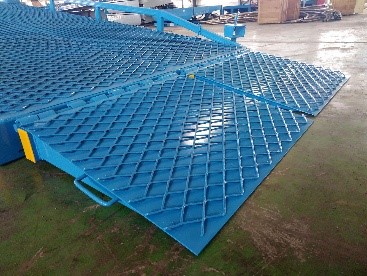

  • Tapered lip edge provide a smooth transition between container and ramp.
  • Two safety chain secure the fixing between ramp and truck box.
  • Hydraulic pump adjust the ramp to the desired position.
  • Guard rail (curb) provide safety and direction for forklift movement.
  • Can be 3-side loading or 2-side loading by adding lip on sides.
  • Two rubber bumper absorb the shock between truck box and ramp.
  • The dimension for every part can be customized to suit to actual demand.
